Tank EPC, Construction – Project

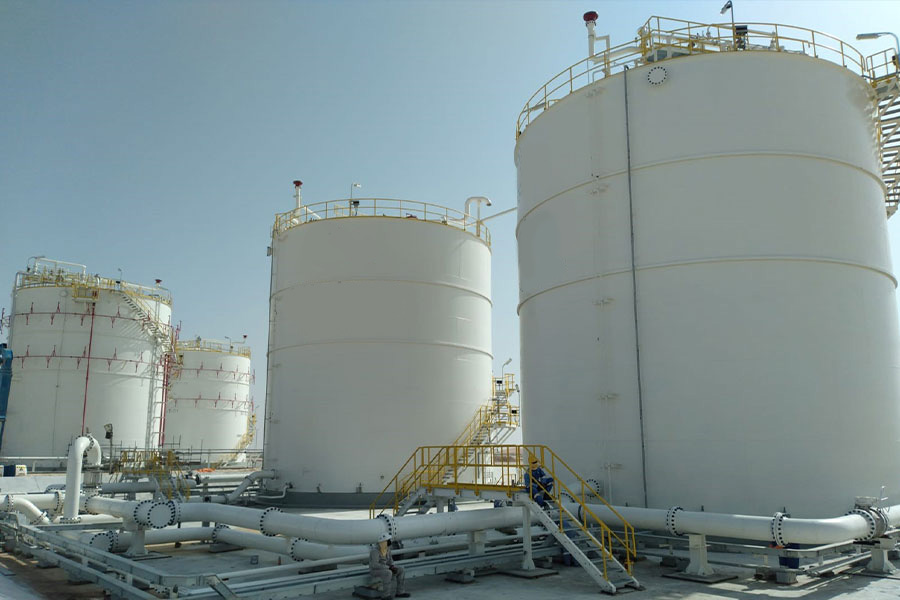

EPC of 4 Storage tanks at Bisat EPF Station B

Client: Schlumberger
End User: OQEP
Scope: Tank EPC
Peak Manpower

96 Numbers

Total Man Hours

.478 million

Execution Timeline

2020 to 2021

Number of Tanks

4 Nos.

Scope: Engineering Design, pre-fabrication, site Installation, Non-destructive testing, Painting, & Hydro-testing Design of 4 numbers of Storage tanks (API 650) at Bisat EPF Station B project.

Tank Details

Tank: On Spec Crude Oil Storage Tank (Tank No. BST-B-21-T-01)

  • Dimensions: ID 14.63m x H 15.0m
  • Equipment Weight: 227 Mt
  • Material: A 36
  • Tank Capacity: 2459.36 Cub Mtr
  • Process Fluid: Crude Oil

Tank: Off Spec Crude Oil Storage Tank (Tank No. BST-B-21-T-02)

  • Dimensions: ID 14.63m x H 16.5m
  • Equipment Weight: 275 Mt
  • Material: A 36
  • Tank Capacity: 2774.19 Cub Mtr
  • Process Fluid: Crude Oil

Tank: Produced Water Storage Tank (Tank No. BST-B-31-T-01A)

  • Dimensions: ID 14.63m x H 15.5m
  • Equipment Weight: 227 Mt
  • Material: A 36
  • Tank Capacity: 2459.36 Cub Mtr
  • Process Fluid: Crude Oil

Tank: Produced Water Storage Tank (Tank No. BST-B-31-T-01B)

  • Dimensions: ID 14.63m x H 15.5m
  • Equipment Weight: 227 Mt
  • Material: A 36
  • Tank Capacity: 2459.36 Cub Mtr
  • Process Fluid: Crude Oil
